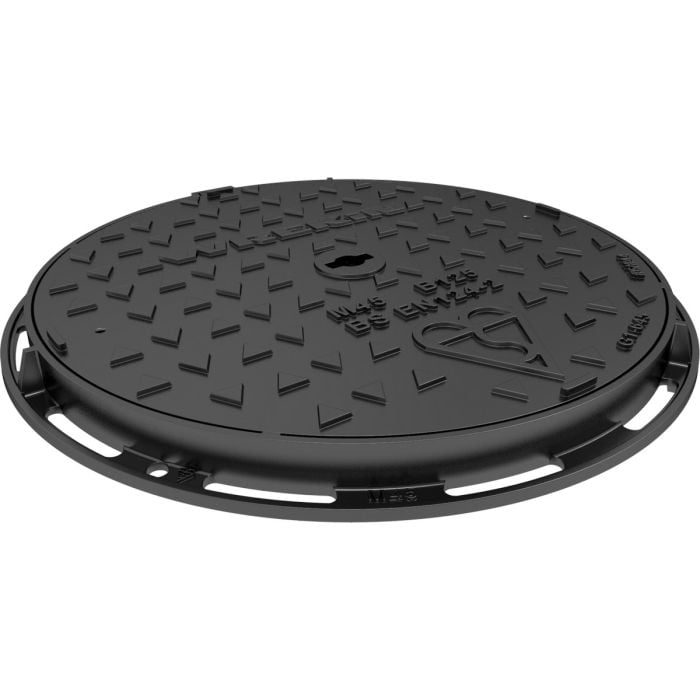

The Wrekin B125 Solid Top Ductile Iron Cover & Frame features a variety of enhancements for ease of use and optimal performance. The indexed covers ensure a perfect fit every time, while the integrated labyrinth seal prevents water ingress and odour escapes, helping to maintain a safe and hygienic environment. Additionally, the safety keyway prevents accidental disengagement, simplifying both handling and installation.
Features & Benefits:
-
BS EN 124:2015 B125 Group 2 Compliance: Certified with the British Standard Kitemark for guaranteed quality.
-
Precise Fit: Indexed covers ensure a perfect fit with every installation.
-
Labyrinth Seal: Effectively prevents odour escapes and water ingress.
-
Safety Keyway: Designed to prevent accidental disengagement of the lifting key, ensuring secure handling.
-
Performance Tested: 70+ PSRV tested at the chequered surface by a UKAS accredited third-party.
-
Convenient Removal: Slide-out cover design for easy removal and maintenance.
-
Flanges: 4.
-
Customization: Available for both application and customer badging.
-
Weight Class: B125.
-
Dimensions: 450mm diameter, 30mm thickness, 25mm seating depth, and 25mm depth of insertion.
-
Raised Pattern Area: 31,830 mm².
The Wrekin B125 Solid Top Ductile Iron Cover & Frame offers an ideal solution for secure, reliable access in a variety of applications, ensuring both durability and ease of use
Specification
| Weight |
16.50 kg |
| Manufacturer Code |
DMS1B2/45D |
| Brand |
Wrekin |
| Diameter |
450mm |
| For Manhole Type |
Solid Top |
| Material |
Metal |
| Material Type |
Ductile Iron |
| Range |
Safeseal |
| Shape |
Circular |
| Type |
Manhole cover |
| Thickness |
30mm |
| Width |
450mm |
