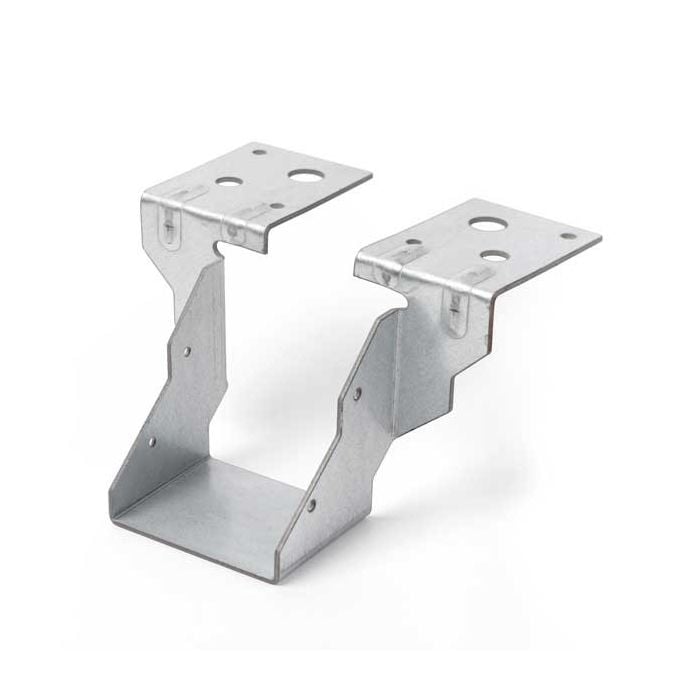

Introducing the Standard Timber to Wall Joist Hanger – a durable and dependable solution for securing timber joists to masonry walls. Featuring a wide top flange for enhanced load capacity, this non-welded steel hanger is ideal for a wide range of construction projects. Engineered to support compressive strengths of 3.5N/mm² and above, it provides a stable and long-lasting connection, ensuring peace of mind for both builders and homeowners.
Constructed from pre-galvanised steel for excellent resistance to corrosion and wear, this hanger’s single-piece design ensures maximum strength. Manufactured with precision according to BS EN 845-1:2013 and Eurocode 5 standards, it offers top-tier performance. With pre-drilled holes in the side gussets, it is designed for easy and efficient installation.
Key Features & Benefits:
- Single-piece, non-welded design for optimal strength.
- Wide top flange to maximize load capacity on masonry.
- Made from pre-galvanised steel for durability.
- Pre-drilled side gussets for secure attachment to timber joists.
- Complies with BS EN 845-1: 2013 and Eurocode 5 standards.
- Galvanised to BS EN 10345:2009, S280 + G275.
- Supports compressive strengths of 3.5N/mm² and above.
- Safe Working Load on masonry strength of 7.0N/mm: 3.13kN.
- Safe Working Load on masonry strength of 3.5N/mm: 2.67kN.
- Timber width: 50mm.
- Bearing area: 75mm.
- Dimensions: 225mm x 47mm.
Designed for strength, durability, and ease of installation, this joist hanger is an excellent choice for both professional and DIY construction projects.
| Weight | 0.63 kg |
|---|---|
| Manufacturer Code | JH47/225 |
| Brand | Catnic |
| For Joist Width | 47mm |
| Length | 225mm |
| Width | 47mm |
| For Fixing Material | Timber to Masonry |
