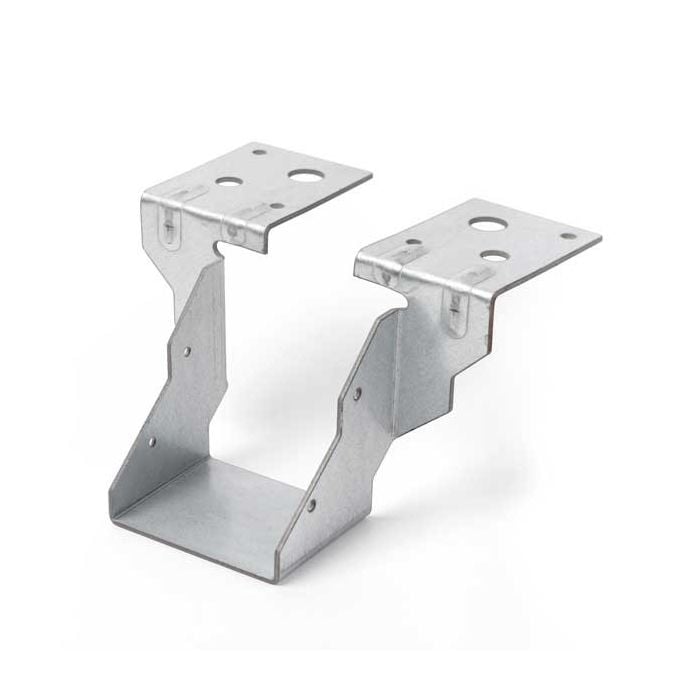

Introducing the Standard Timber to Wall Joist Hanger, a strong and reliable solution for securing timber joists to masonry walls. Featuring a wide top flange for increased load capacity, this non-welded steel hanger is ideal for a variety of construction projects. Engineered to support compressive strengths of 3.5N/mm² and above, it provides a stable and durable connection, giving builders and homeowners peace of mind.
Constructed from pre-galvanised steel for exceptional resistance to corrosion and wear, this hanger is built to last. Its single-piece design ensures maximum strength, while precision manufacturing to BS EN 845-1:2013 and Eurocode 5 standards guarantees high-quality performance. With pre-punched holes in the side gussets, this hanger allows for quick and easy installation to timber joists.
Key Features & Benefits:
- Single-piece, non-welded construction for enhanced strength.
- Wide top flange to maximize load capacity on masonry walls.
- Made from pre-galvanised steel for durability and corrosion resistance.
- Pre-drilled holes in side gussets for secure attachment to timber joists.
- Complies with BS EN 845-1:2013 and Eurocode 5 standards.
- Galvanised to BS EN 10345:2009, S280 + G275.
- Suitable for compressive strengths of 3.5N/mm² and above.
- Safe Working Load on masonry strength of 7.0N/mm: 3.13kN.
- Safe Working Load on masonry strength of 3.5N/mm: 2.67kN.
- Timber width: 50mm.
- Bearing area: 75mm.
- Dimensions: 200mm x 47mm.
This joist hanger provides a robust, durable, and easy-to-install solution for both professional and DIY construction projects.
| Weight | 0.61 kg |
|---|---|
| Manufacturer Code | JH47/200 |
| Brand | Catnic |
| For Joist Width | 47mm |
| Length | 200mm |
| Width | 47mm |
| For Fixing Material | Timber to Masonry |
