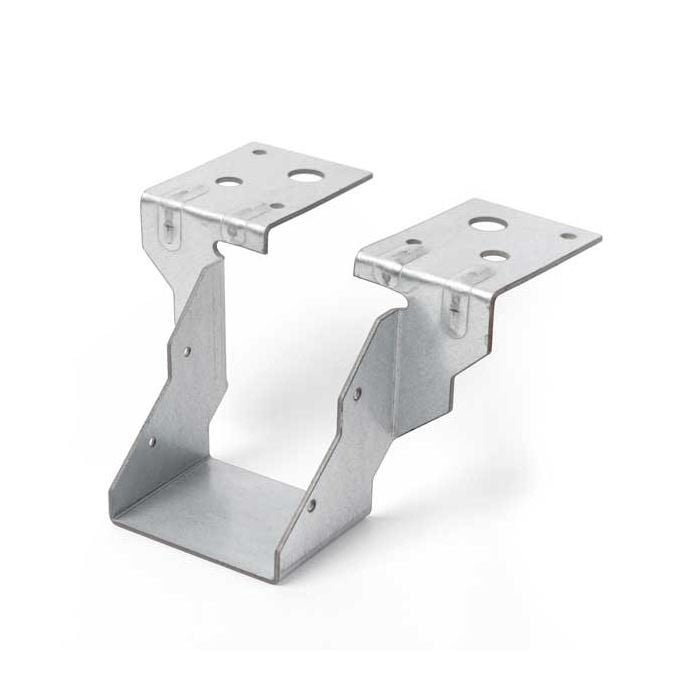

Introducing the Standard Timber to Wall Joist Hanger, a strong and dependable solution for securing timber joists to masonry walls. Designed with a wide top flange, this non-welded steel hanger maximizes load capacity, making it ideal for a wide range of construction projects. Engineered to support compressive strengths of 3.5N/mm² and above, it ensures a stable, durable connection, giving builders and homeowners peace of mind.
Crafted from pre-galvanised steel, this hanger is built for longevity, providing excellent resistance to corrosion and wear. The single-piece construction offers maximum strength, while precision manufacturing to BS EN 845-1:2013 and Eurocode 5 standards guarantees superior performance. Pre-punched holes in the side gussets allow for easy attachment to timber joists, making installation quick and straightforward.
Key Features & Benefits:
- Single-piece, non-welded construction for enhanced strength.
- Wide top flange to maximize load capacity on masonry walls.
- Made from pre-galvanised steel for long-lasting durability.
- Pre-drilled holes in side gussets for secure attachment to timber joists.
- Meets BS EN 845-1:2013 and Eurocode 5 standards.
- Galvanised to BS EN 10345:2009, S280 + G275.
- Supports compressive strengths of 3.5N/mm² and higher.
- Safe Working Load on masonry strength of 7.0N/mm: 3.13kN.
- Safe Working Load on masonry strength of 3.5N/mm: 2.67kN.
- Timber width: 50mm.
- Bearing area: 75mm.
- Dimensions: 175mm x 47mm.
This joist hanger provides a robust, reliable, and easy-to-install solution, making it ideal for both professional and DIY construction projects.
| Weight | 0.53 kg |
|---|---|
| Manufacturer Code | JH47/175 |
| Brand | Catnic |
| For Joist Width | 47mm |
| Length | 175mm |
| Width | 47mm |
| For Fixing Material | Timber to Masonry |
