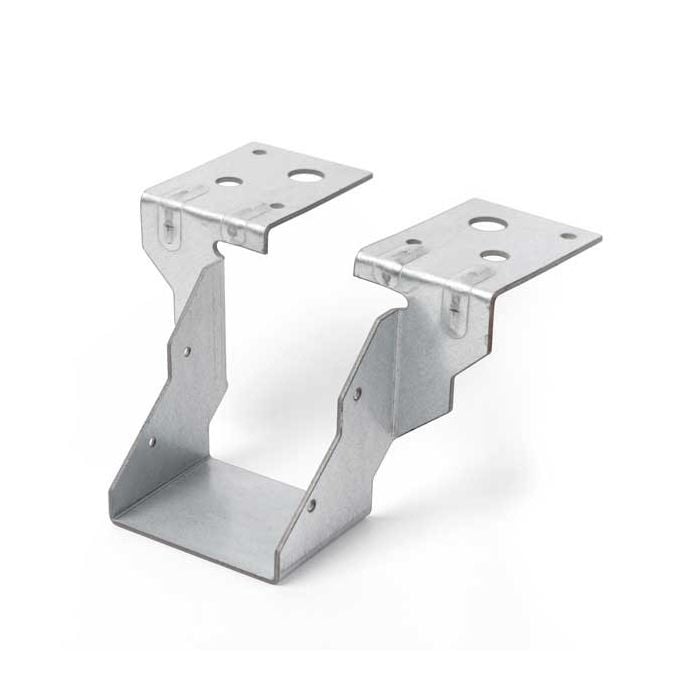

Introducing the Standard Timber to Wall Joist Hanger, a durable and reliable solution for securing timber joists to masonry walls. Featuring a wide top flange, this non-welded steel hanger maximizes load capacity, making it ideal for a variety of construction projects. Designed to support compressive strengths of 3.5N/mm² and above, it provides a stable and long-lasting connection, ensuring peace of mind for builders and homeowners.
Made from pre-galvanised steel, this hanger offers excellent resistance to corrosion and wear. Its single-piece construction ensures maximum strength, while precision manufacturing to BS EN 845-1:2013 and Eurocode 5 standards ensures top-quality performance. With pre-drilled holes in the side gussets, the hanger allows for easy attachment to timber joists, making installation quick and efficient.
Key Features & Benefits:
- Single-piece, non-welded construction for optimal strength.
- Wide top flange to increase load capacity on masonry walls.
- Crafted from pre-galvanised steel for long-lasting durability.
- Pre-punched holes in side gussets for secure attachment to timber joists.
- Compliant with BS EN 845-1:2013 and Eurocode 5 standards.
- Galvanised to BS EN 10345:2009, S280 + G275.
- Supports compressive strengths of 3.5N/mm² and higher.
- Safe Working Load on masonry strength of 7.0N/mm: 3.13kN.
- Safe Working Load on masonry strength of 3.5N/mm: 2.67kN.
- Timber width: 50mm.
- Bearing area: 75mm.
- Dimensions: 150mm x 47mm.
Designed for strength, durability, and ease of installation, this joist hanger is an excellent choice for both professional builders and DIY projects.
| Weight | 0.50 kg |
|---|---|
| Manufacturer Code | JH47/150 |
| Brand | Catnic |
| For Joist Width | 47mm |
| Length | 150mm |
| Width | 47mm |
| For Fixing Material | Timber to Masonry |
