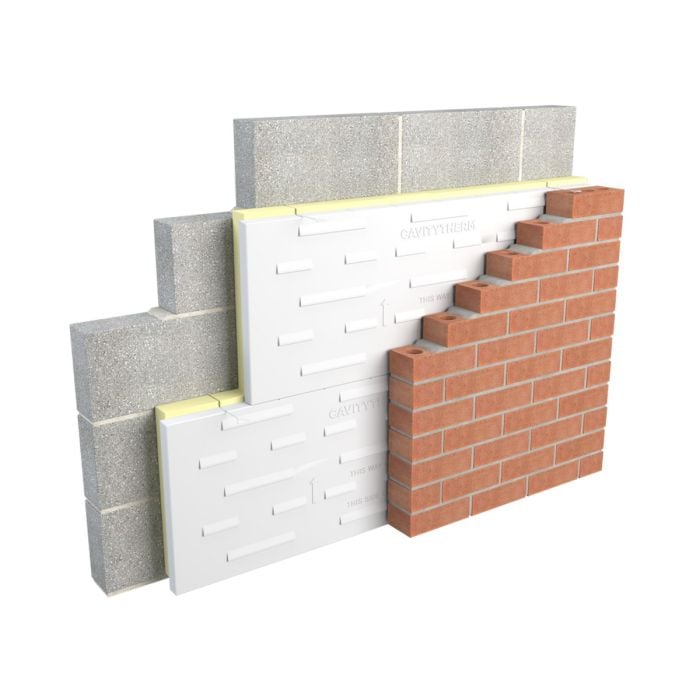

Introducing the Unilin Full Fill PIR Cavity Wall Insulation, an innovative solution designed to enhance the efficiency and performance of traditional wall insulation. Engineered to achieve passive-level U-values as low as 0.12 W/m²K, this insulation provides excellent thermal bridging details in cavities less than 150mm wide, making it an indispensable addition to any construction project focused on maximizing energy efficiency and comfort.
This high-performance composite board is made from enhanced polyisocyanurate (PIR) with a lambda value of 0.021 W/mK, specifically tailored for full fill cavity wall applications. Its engineered HIPs facer offers robust protection against wind-driven rain, while strategically placed slots for wall ties help prevent any creep.
Meeting the requirements of FEES 2014 Part L, this product achieves zero carbon performance within a traditional cavity width, making it an environmentally friendly option that aligns with modern building standards.
Features & Benefits:
- High-performance composite board made from enhanced PIR.
- Perfect for full fill cavity wall applications.
- Engineered HIPs facer provides protection against wind-driven rain.
- Prepositioned slots for sloping wall ties prevent creep.
- Exceptional thermal bridging performance.
- Moisture is redirected to the outer surface.
- Fully engineered jointing system, removing the need for taping.
- Complies with FEES 2014 Part L, achieving zero carbon performance within a traditional cavity width.
- A comprehensive range of accessory pieces is available for a continuous system.
- Achieves U-values as low as 0.12 W/m²K.
- Lambda value of 0.021 W/mK.
- Coverage: 0.54 m² per board.
- Size: 1200mm x 450mm x 150mm.
Specification Weight 12.60 kg Manufacturer Code CT/PIR/150/BD/CP01 Brand Unilin Insulation Material Type Polyisocyanurate Width (Imperial) 1ft 6in Length 1200mm Thickness 150mm Width 450mm
