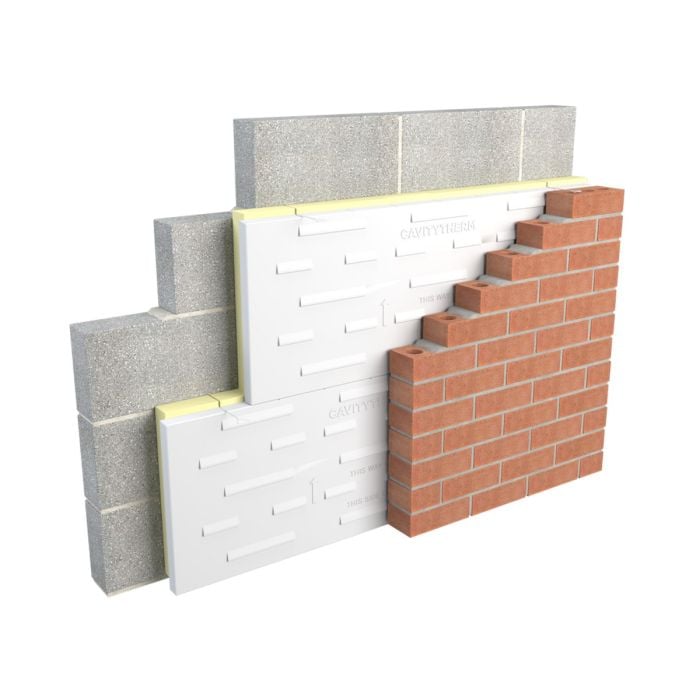

Introducing the Unilin Full Fill PIR Cavity Wall Insulation, an innovative solution for traditional wall insulation that sets new standards in efficiency and performance. Designed to achieve passive level U-values as low as 0.12 W/m²K, this insulation provides exceptional thermal bridging details for cavities under 150mm wide, making it an essential component for any construction project focused on enhanced energy efficiency and comfort.
The Unilin Cavity Wall Insulation is a high-performance composite board made from advanced PIR, featuring a lambda value of 0.021 W/mK, specifically for full-fill cavity wall applications. Its engineered HIPs facer offers protection against wind-driven rain, while pre-placed slots for wall ties help prevent any creep.
This product complies with FEES 2014 Part L requirements and delivers zero carbon performance within a standard cavity width, making it an environmentally friendly option for contemporary building standards.
Features & Benefits:
- High-performance composite board utilizing enhanced PIR.
- Ideal for full-fill cavity wall applications.
- Engineered HIPs facer designed for protection against wind-driven rain.
- Pre-placed slots for sloping wall ties to prevent creep.
- Excellent thermal bridging performance.
- Moisture is redirected to the outer surface.
- Fully engineered jointing system eliminates the need for taping.
- Meets FEES 2014 Part L standards, achieving zero carbon performance within a traditional cavity width.
- Complete range of accessory pieces available for a continuous system.
- Achieves U-values as low as 0.12 W/m²K.
- Lambda value of 0.021 W/mK.
- Coverage of 0.54 m² per board.
- Size: 1200mm x 450mm x 100mm.
Specification Weight 2.10 kg Manufacturer Code CT/PIR/100/BD/CP01 Brand Unilin Insulation Material Type Polyisocyanurate Width (Imperial) 1ft 6in Length 1200mm Thickness 100mm Width 450mm Fire Classification N/A
