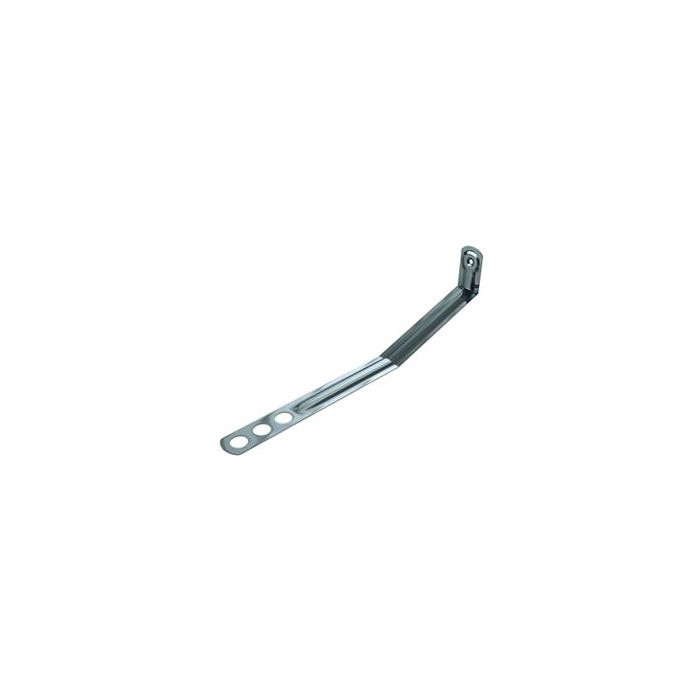

These Timber Frame Ties, meticulously crafted from grade 304 stainless steel with an annular design, are engineered to provide exceptional support for domestic and small commercial buildings up to four storeys high. These high-quality frame ties ensure the stability and longevity of your construction, even in challenging environments.
Suitable for structures with a maximum height of 15 meters and cavity widths ranging from 50 to 100mm, these ties offer robust solutions for flat sites experiencing basic wind speeds of up to 25 m/s and altitudes not exceeding 150 meters above sea level. Designed to accommodate vertical movement, the Timber Frame Ties ensure that your structures can withstand environmental stresses without sacrificing integrity.
With excellent corrosion resistance, these ties guarantee a service life of at least 60 years, making them a dependable choice for long-term projects. They are also non-combustible as defined by national building regulations and have been rigorously tested to meet BS EN 845-1 standards for soundness and strength.
Features & Benefits:
- Suitable for buildings up to four storeys high.
- Maximum height capacity of 15 meters.
- Compatible with cavity widths from 50 to 100mm.
- Ideal for flat sites with basic wind speeds up to 25 m/s.
- Designed for altitudes not exceeding 150 meters above sea level.
- Engineered to allow for vertical movement.
- Constructed from grade 304 stainless steel.
- Non-combustible, compliant with national building regulations.
- Excellent corrosion resistance.
- Service life of at least 60 years.
- Effectively resists thermal transmittance through wall cavities.
- Tested as Type B (sound) and Type 6 (strength) to BS EN 845-1.
- Comes with 50mm x 3.35mm stainless steel annular ring nails.
- Handle with care due to potentially sharp edges.
- Size: 50mm
Specification Weight 0.01 kg Manufacturer Code V61-125-STST Brand Vista Length (Imperial) 2in Material Metal Material Type Stainless Steel Type Frame Ties Length 50mm Thickness 3.35mm Width 15mm
