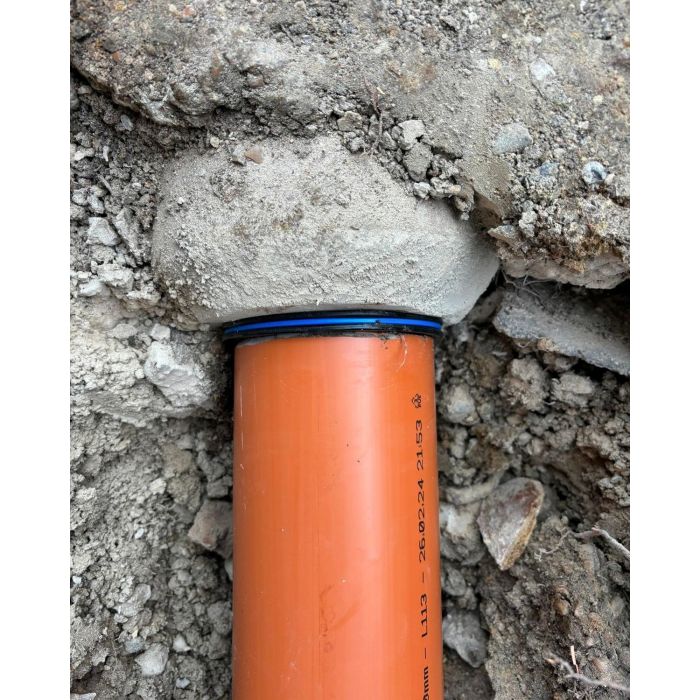

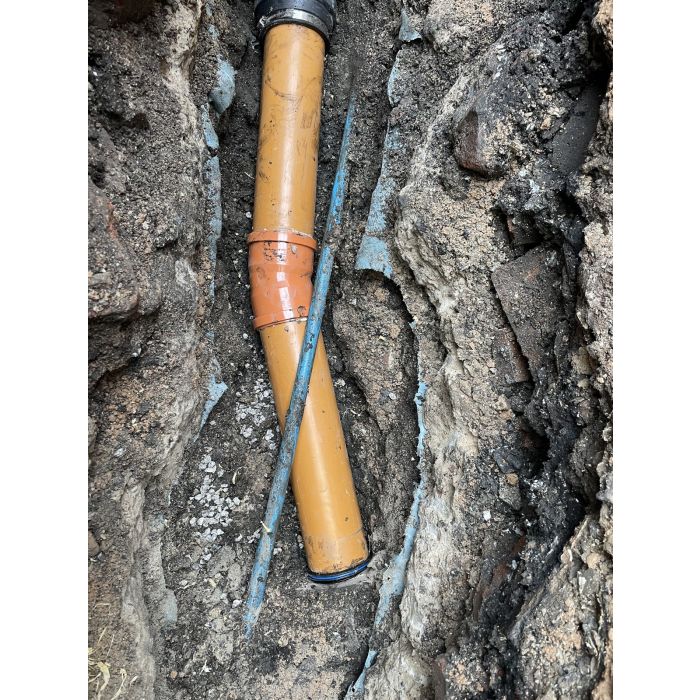

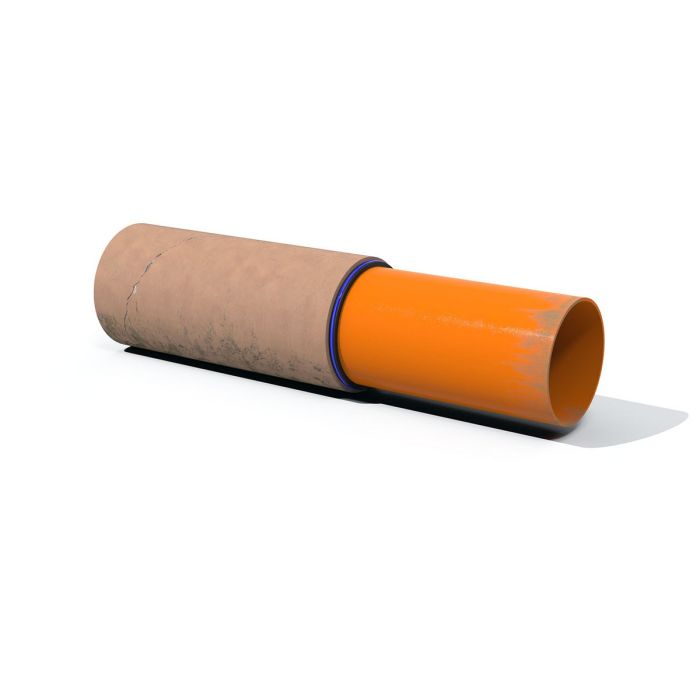

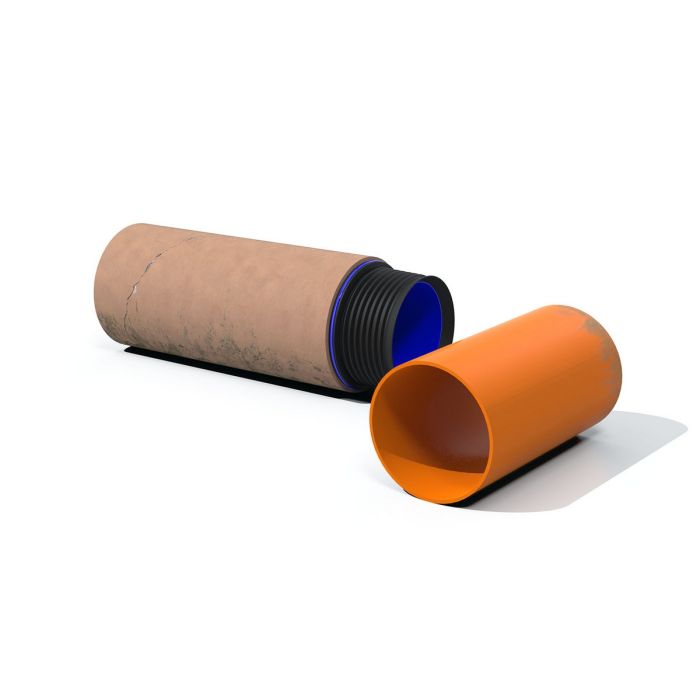

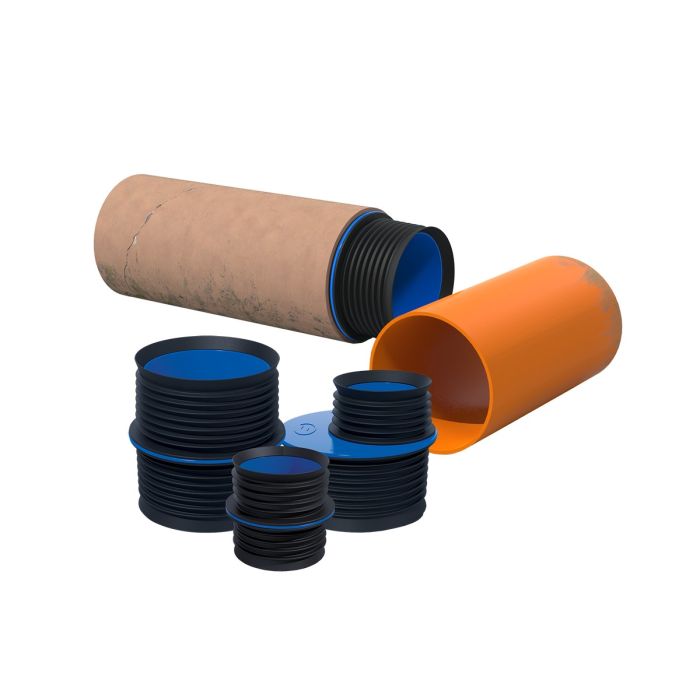

Fernco Icon Pushfit Couplings are designed to connect drainage pipes (both wastewater and rainwater) by utilizing the internal surface of the pipes. Unlike traditional flexible couplings, which attach to the exterior of drainage pipes, the Icon internal Pushfit Couplings are perfect for situations where access to the outside of the pipe is restricted, such as when pipes are encased in concrete or surrounded by brick or other solid materials. This innovative design saves time and allows for effective connections using the internal surface of the pipes.
The materials used in the construction of these couplings meet the latest standards for below-ground applications, while their minimal visual profile makes them suitable for above-ground use as well.
Features & Benefits:
- Significantly reduces labor time when connecting difficult pipes.
- Ensures a watertight connection with any pipe material.
- Capable of connecting pipes with varying or irregular outside diameters.
- Eliminates the need to expose the external surface of the pipe.
- Successfully passes pressure tests.
- Provides protection against shear loads.
- Tool-free installation in 30 seconds or less.
-

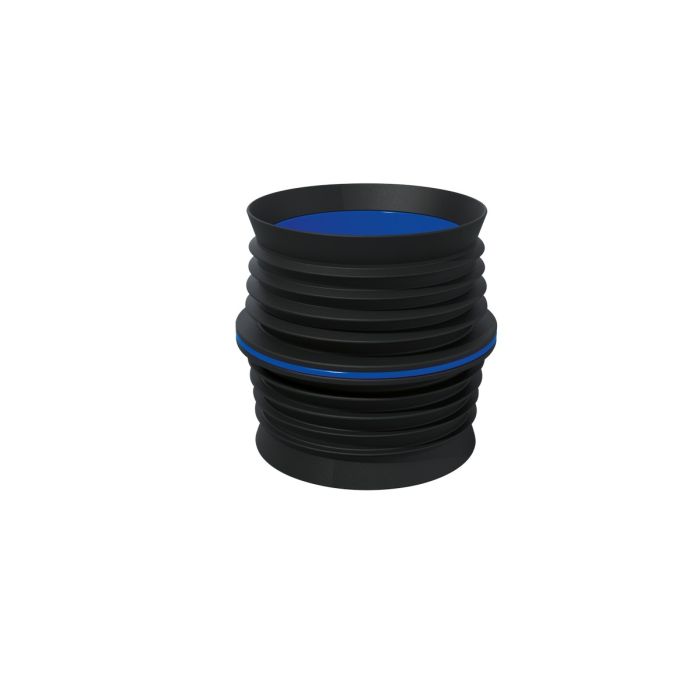

Size: 99-103mm
Specification Weight 0.22 kg Manufacturer Code ICP100 Brand Fernco Colour Black/Blue Material Plastic/Rubber Material Type EPDM Rubber/ABS Plastic Width 120mm Height 113mm Length 120mm
