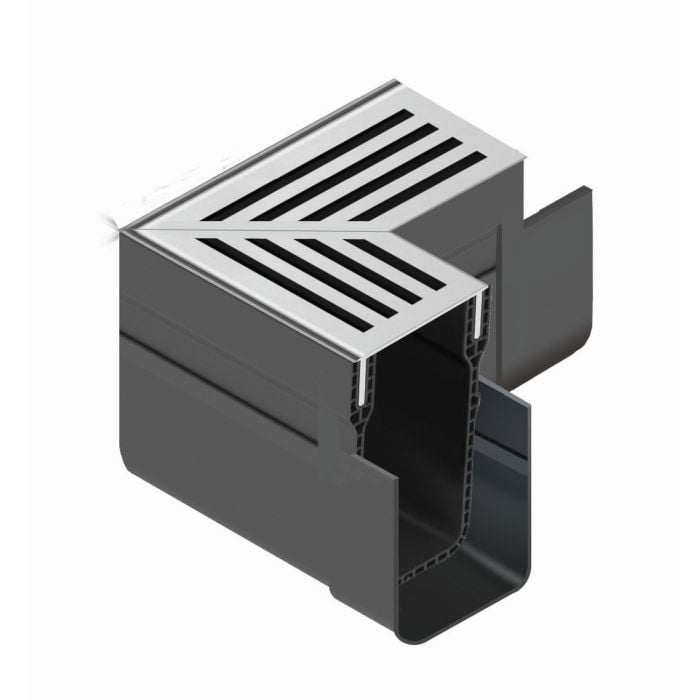

The Threshold Drain Corner Unit Assembly with Silver Aluminium Grating is a premium solution designed to prevent water accumulation at entryways and patios. Made from high-quality extruded plastic, this drainage system features a sleek aluminium grating that enhances the aesthetic appeal of your outdoor space while ensuring long-lasting functionality. It is built to withstand pedestrian traffic with ease.
This versatile corner unit is a key component for modern patio drainage systems and integrates seamlessly into your existing setup. Certified to meet the requirements of Building Regulations for England, Wales, and Scotland, it offers both reliability and compliance.
Effectively eliminating water ponding, this unit ensures a dry and safe environment for your home, even in heavy rain or after routine cleaning.
Features & Benefits:
- Made from durable extruded plastic.
- Includes a silver aluminium Heelguard grating suitable for pedestrian traffic.
- Designed to create a 90-degree corner in your drainage system.
- Ideal for modern patio drainage systems.
- Suitable for pedestrian traffic.
- Compliant with Part M of the Building Regulations for England and Wales and Section 4 of the Scottish Building Standards.
- Prevents water ponding at house entrances and patios.
- Easy to install and maintain.
- Also available with a Black Aluminium Grating (ACD040).
Specification Weight 0.40 kg Manufacturer Code 19006 Brand Aco Colour Silver Colour Group Silver Finish N/A Grate Material Aluminium Material Metal Material Type Aluminium Range Threshold Drain Type Corner Units Height 93mm Length 159mm Width 61mm Depth 100mm
