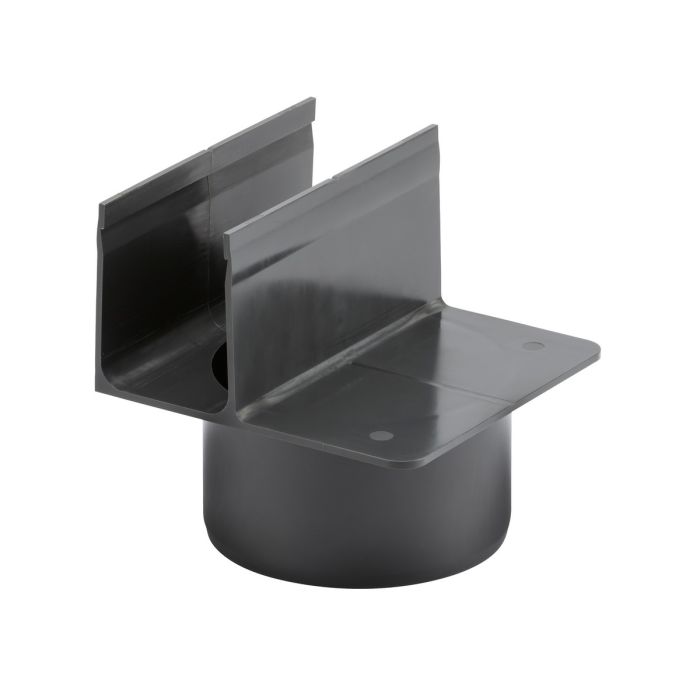

The ACO 110mm Bottom Outlet Threshold Channel is designed to effectively prevent water ponding at house entrances and patios. With its sleek, functional design, this drainage system integrates seamlessly into any outdoor space, providing efficient water removal.
Constructed from durable extruded plastic and paired with high-quality grating options, the ACO Threshold Drain is built for reliability and pedestrian traffic. Its offset design allows easy placement next to buildings, connecting directly to a 110mm diameter pipe system without the need for extra shims or converters.
Compliant with Part M of the Building Regulations for England and Wales, as well as Section 4 of the Scottish Building Standards, it meets necessary safety and accessibility standards.
Features & Benefits:
- Made from extruded plastic with aluminium or steel grating options.
- Offset positioning for placement next to buildings.
- Suitable for pedestrian traffic.
- Compliant with Part M of the Building Regulations for England and Wales.
- Compliant with Section 4 of the Scottish Building Standards.
- Click-fit to Threshold Drain channel.
- Outlet connects to ø110mm pipework.
- Drill line indicator for easy installation.
- Compatible with various accessories including corner units and vertical outlets.
- Available in 1m lengths.
- Width: 60mm.
Specification Weight 0.04 kg Manufacturer Code 19011 Brand Aco Colour Black Colour Group Black Finish N/A Material Plastic Material Type Polypropylene Range Threshold Drain Type Outlet Length 133mm Thickness 70mm Width 133mm Depth 133mm
