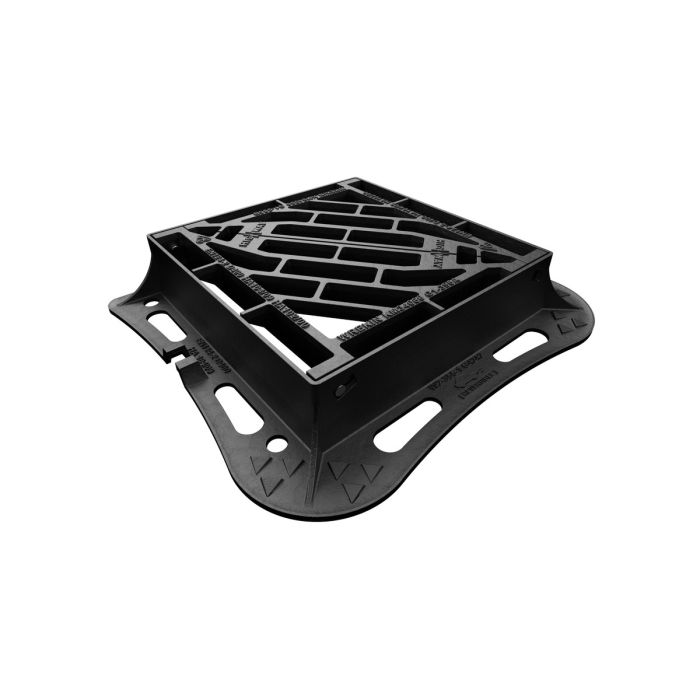

The Wrekin D400 Hinged Gully Grating is a durable and reliable solution designed to handle heavy loads and deliver long-lasting performance. Featuring enhanced frame corners, it efficiently distributes loads onto the foundation, contributing to its extended service life and exceptional reliability.
Constructed from strong ductile iron, the grating is equipped with captive hinges that reduce the risk of theft and make lifting easier. The reversible hinge aligns with traffic flow for added safety, making it particularly suited for high-traffic environments.
This product complies with BS EN 124 standards, ensuring excellent quality, performance, and hydraulic capacity. Additionally, it is third-party Kitemark certified for its mechanical durability.
Features & Benefits:
- Overall Frame: 615 x 545mm
- Clear Opening: 425 x 425mm
- Frame Depth: 100mm
- Base Opening: 450 x 450mm
- Waterway Area: 1250cm²
- Material: Ductile iron
- Flanges: 3
- Frame/Manhole Shape: Rectangular
- Standards: BS EN 124
- BS EN 124 Class: D400
- BS EN 124 Group: 3 / 4
- Third Party Certified: Kitemark
-
CD526 Hydraulic Capacity: R
Specification Weight 34.60 kg Manufacturer Code DGHT0D4/4242/KH Brand Wrekin Material Metal Material Type Ductile Iron Range Highway Shape Rectangular Type Gully grate
