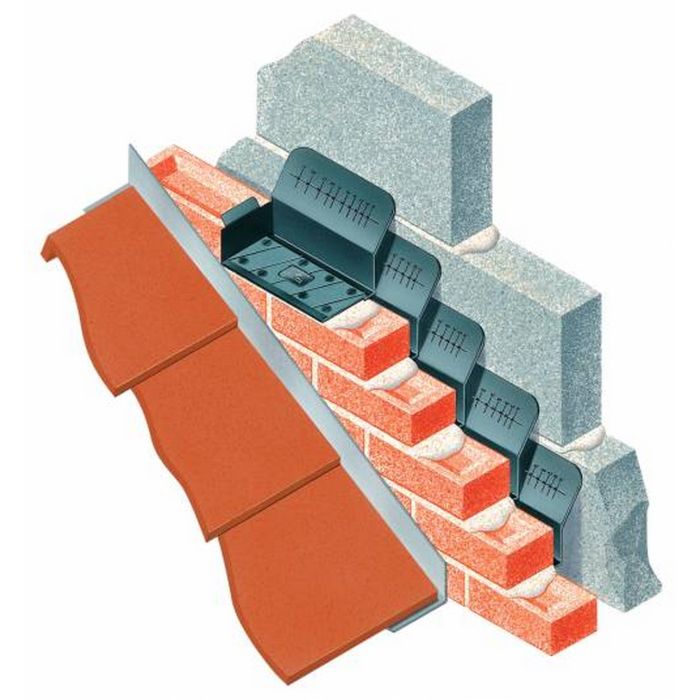

The Gable Abutment Catchment Collect Tray is integrated at the base of a slope to effectively gather and discharge water through a Caviweep.
Features & Benefits:
- Designed for pitch angles of 17.5 degrees and above.
- Adjustable to accommodate cavity widths from 50mm to 160mm as standard.
- Suitable for use in both brickwork and rendered blockwork applications.
- Designed for left-hand installation.
Specification Weight 5.00 kg Manufacturer Code CL NO LEAD Brand Cavity Trays Colour Black Finish Textured Material Type Polypropylene Range Advantage Height 170mm Length 230mm Width 250mm Cavity Size 50-160mm
