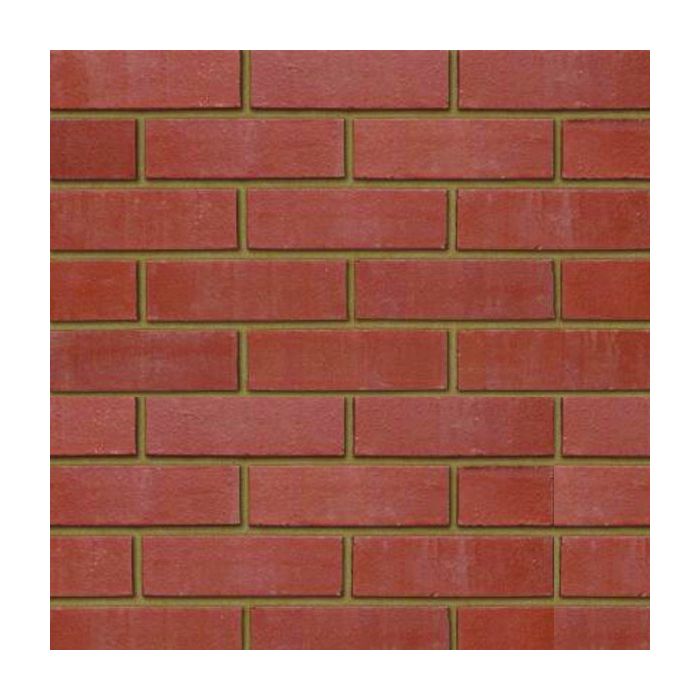

Wienerberger Smooth Red Engineering Brick (Class B) – High-Strength Brick for Structural and Aesthetic Use
Engineered for performance and designed for versatility, the Wienerberger Smooth Red Engineering Brick (24190000) is a Class B brick ideal for both heavy-duty construction and visual detailing. With a sleek, smooth red face, this perforated wirecut brick is built to deliver exceptional strength, low water absorption, and a professional finish.
Though primarily intended for structural applications below DPC (damp-proof course) level—such as foundations, retaining walls, and drainage work—its durable surface and uniform appearance make it equally suitable for aesthetic use in exposed brickwork.
Features & Benefits:
-
Heavy-Duty Performance: High crushing strength and density, perfect for structural loads.
-
Low Water Porosity: Water absorption rate of <7%, suitable for damp environments and below DPC applications.
-
Dimensional Precision: Manufactured to T2/R1 tolerances for consistent size and clean installations.
-
Durability Rating: F2 – weather-resistant and frost-resistant, suitable for severe exposure.
-
Aesthetic Capability: Smooth red finish allows dual-purpose use as both an engineering and facing brick.
-
Soluble Salt Resistance: S2 rating protects against efflorescence.
-
Reliable Density: Gross dry density of 1360 kg/m³, tolerance class D1, ensuring lasting structural stability.
-
Sustainable Quality: Produced by Wienerberger, a leading name in European brick manufacturing.
Technical Specifications:
-
Manufacturer: Wienerberger
-
Manufacturer Code: 24190000
-
Type: Class B Engineering Brick
-
Finish: Smooth
-
Colour: Red
-
Colour Group: Red
-
Size: 215mm (L) x 102mm (W) x 65mm (H)
-
Weight: 2.25 kg
-
Size Tolerance: T2
-
Range Tolerance: R1
-
Tolerance Dimensions:
-
Length: ±4mm (Min 211mm / Max 219mm)
-
Width: ±3mm (Min 99.5mm / Max 105.5mm)
-
Height: ±2mm (Min 63mm / Max 67mm)
-
-
Water Absorption: <7%
-
Initial Water Absorption: 0.1–0.4 kg/m²/min
-
Durability: F2
-
Active Soluble Salts: S2
-
Gross Dry Density: 1360 kg/m³
-
Density Class: D1
Recommended Applications:
-
Foundation work
-
Retaining walls
-
Drainage systems
-
Below DPC structural projects
-
Visible masonry requiring a smooth, consistent finish
-
Engineering-grade face brickwork in commercial or residential settings
Why Choose the Wienerberger Smooth Red Engineering Brick?
Blending engineering-grade performance with a clean visual finish, this Class B brick is the ideal solution for demanding construction environments where both strength and appearance matter. Trusted by professionals, it meets and exceeds modern building standards while providing timeless design flexibility.
