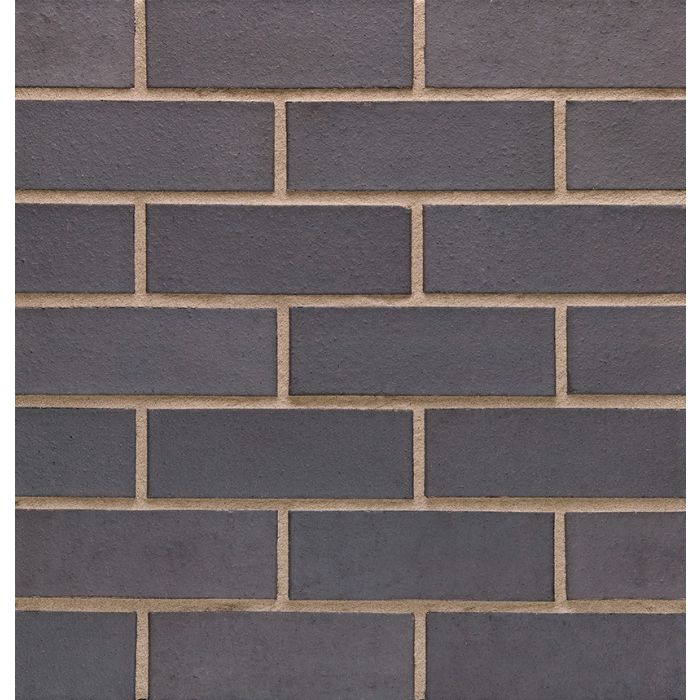

Wienerberger Solid Wire-Cut Engineering Brick – Smooth Slate Blue for Heavy-Duty Structural Applications
Designed for demanding engineering projects, the Wienerberger Solid Wire-Cut Engineering Brick features a smooth slate blue surface combined with the strength and durability required for use at or below damp-proof course (DPC) level. Engineered to deliver exceptional performance, this Class B engineering brick is ideal for foundations, drainage systems, and other structural applications where minimal water absorption and high crushing strength are paramount.
While primarily intended for structural use, this solid brick’s attractive smooth finish also allows for selective use in face brickwork where durability and a clean aesthetic are necessary. Its dense composition and robust build make it a trusted choice for builders requiring a brick that excels under challenging conditions.
Features & Benefits:
- Class B Engineering Brick: Terca brand solid unit, designed specifically for use at or below DPC level.
- Exceptional Strength: High crushing strength ensures durability in heavy-duty construction.
- Low Water Absorption: Water absorption rate of less than 7%, with initial absorption between 0% and 0.5%, providing excellent moisture resistance.
- Size & Dimensional Tolerances: Manufactured with T2 size tolerance and R1 range tolerance for precision fitting.
- Robust Construction: Gross dry density of 2190 kg/m³ delivers a dense, solid product suitable for demanding environments.
- Durability & Salts Resistance: Rated F2 for durability and S2 for low active soluble salts, reducing risks of efflorescence and degradation.
- Smooth Slate Blue Finish: Offers a subtle aesthetic touch for applications requiring both strength and appearance.
Product Specifications:
-
Manufacturer: Wienerberger
-
Manufacturer Code: 24331230
-
Brand: Wienerberger
-
Type: Solid Wire-Cut Engineering Brick
-
Finish: Smooth
-
Colour: Slate Blue
-
Colour Group: Blue
-
Size: 215mm (L) x 102mm (W) x 65mm (H)
-
Weight: 3.22 kg per brick
-
Size Tolerance: T2
-
Dimensional Tolerance: Length ±4mm, Width ±3mm, Height ±2mm
-
Size Range: R1 (Length ±9mm, Width ±6mm, Height ±5mm)
-
Durability Rating: F2
-
Active Soluble Salts: S2
-
Water Absorption: <7% (Initial 0%–0.5%)
-
Gross Dry Density: 2190 kg/m³
-
Density Tolerance Class: D1
Recommended Applications:
-
Structural foundations and load-bearing walls
-
Drainage systems and below DPC level use
-
Areas requiring high durability and low moisture penetration
-
Select face brickwork applications where strength and a smooth blue finish are desired
Why Choose Wienerberger Solid Wire-Cut Engineering Brick?
Offering a combination of traditional engineering brick strength with a smooth, refined finish, this solid slate blue brick is your go-to choice for reliable, long-lasting structural solutions. Manufactured to exacting standards, it ensures exceptional performance in harsh conditions without compromising on appearance where visible brickwork is required.
